Build a Reusable UI Component with Lightning Web Components

Follow Along with Trail Together

Want to follow along with an expert as you work through this step? Take a look at this video, part of the Trail Together series.

(This clip starts at the 46:56 minute mark, in case you want to rewind and watch the beginning of the step again.)

Introduction

Lightning web components are custom HTML elements that use the Web Components standards and are built with HTML and modern JavaScript. A Lightning web component (LWC) runs in the browser natively and allows developers to customize the out-of-the-box user interface.

Create and Deploy a Lightning Web Component

Under the force-app/main/default, right-click the lwc folder and select SFDX: Create Lightning Web Component.
Name the Lightning web component housingMap and select the main/default/lwc directory.

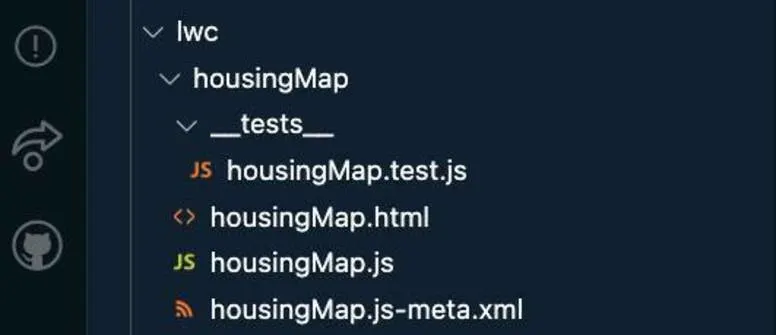

You see these files: an HTML file, a JavaScript file, a metadata XML file, and a test.js file.
In the HTML file, housingMap.html, copy and paste the following code.

    <template>
  <lightning-card title="Housing Map">
    <!-- Explore all the base components via Base component library
    (https://developer.salesforce.com/docs/component-library/overview/components)-->
      <lightning-map map-markers={mapMarkers}> </lightning-map>
  </lightning-card>
</template>

We use a Base Lightning component lightning-map to plot the dataset on a Map. Base components wrap up a lot of functionality. In this example, you didn’t have to write HTML markup to produce a map UI or code as much JavaScript to integrate with Google Maps.

5. Save the file.

6. In the JavaScript file, housingMap.js, copy and paste the following code.

import { LightningElement, wire } from "lwc";
import getHouses from "@salesforce/apex/HouseService.getRecords";
export default class HousingMap extends LightningElement {
    mapMarkers;
    error;
    @wire(getHouses)
    wiredHouses({ error, data }) {
        if (data) {
        console.log(data);
    }
  }
}

The Lightning web component invokes the Apex class HouseService you wrote in the previous section to fetch the data. This code shows how to retrieve data by invoking an Apex method using the @wire decorator.

To allow an Apex method to be used in an LWC, you annotate it with the @AuraEnabled annotation. You can import the @AuraEnabled method to LWC as a function (shown in line 2). When used with the @wire decorator (line 8), the component retrieves data via the method.

Next, let's add code to transform the data as needed by the lightning-map Base component. Replace the code after if (data) {with the following lines.

// Use JavaScript Map function to transform the Apex method response wired to the component into the format required by lightning-map
          this.mapMarkers = data.map((element) => {
                return {
                    location: {
                        Street: element.Address__c,
                        City: element.City__c,
                        State: element.State__c
                    },
                    title: element.Name
                };
            });
            this.error = undefined;
        } else if (error) {
            this.error = error;
            this.mapMarkers = undefined;

The final code in the housingMap.js file should look like this.

import { LightningElement, wire } from "lwc";
import getHouses from "@salesforce/apex/HouseService.getRecords";
export default class HousingMap extends LightningElement {
    mapMarkers;
    error;
    @wire(getHouses)
    wiredHouses({ error, data }) {
        if (data) {
         // Use JavaScript Map function to transform the Apex method response wired to the component into the format required by lightning-map
          this.mapMarkers = data.map((element) => {
                return {
                    location: {
                        Street: element.Address__c,
                        City: element.City__c,
                        State: element.State__c
                    },
                    title: element.Name
                };
            });
            this.error = undefined;
        } else if (error) {
            this.error = error;
            this.mapMarkers = undefined;
        }
    }
}

Save the file.

In the XML file, housingMap.js-meta.xml, make the code changes to match lines 4-7.

<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
 <apiVersion>59.0</apiVersion>
 <isExposed>true</isExposed>
  <targets>
 <target>lightning__HomePage</target>
</targets>
</LightningComponentBundle>

Notice that we have the target attribute set to lightning__HomePage. This means the administrators will have the component available to drop on the Home page. There are additional targets that developers can add here to expose the components for other parts of the Salesforce UI. Sometimes a component's target includes additional context, such as input data. An excellent example is a record Id value on a record page. The targets identified here are what determine whether your component can use these different contexts. Look for how other target types work in the Resources section.

10. Save the file.

11. Right click and select SFDX: Deploy Source to Org.

Add the Component to the App Home

In Visual Studio Code, open the Command Palette by pressing Ctrl+Shift+P (Windows) or Cmd+Shift+P (macOS/Linux).
Type SFDX.
Select SFDX: Open Default Org.
This opens your Trailhead Playground in a separate browser.
Click, search for and select Dreamhouse.
Click , then select Edit Page.
Drag the housingMap Lightning web component from the custom area of the Lightning Components list to the top of the Page Canvas.
Click Save.
Click Activate.
Click Assign as Org Default.
Click Save.
Click Save again, then click to return to the page.

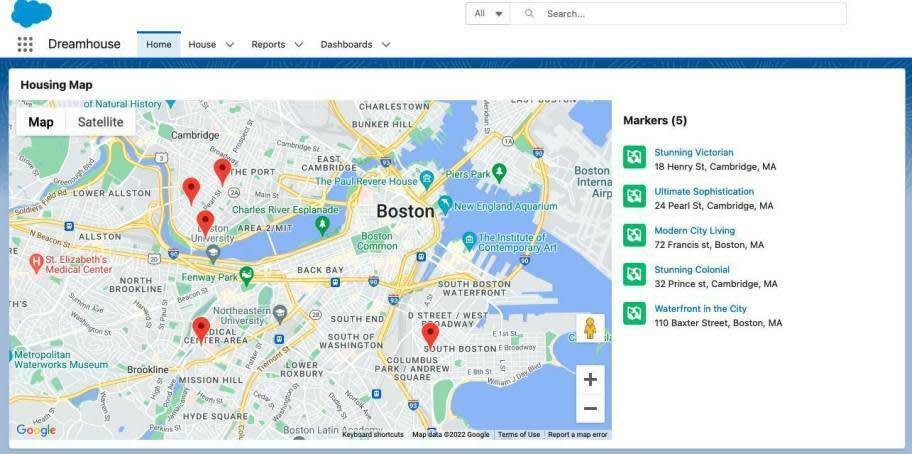

Refresh the page to view your new component.

Building with Lightning web components on Salesforce managed runtime is faster because:

You write less code to achieve more with access to a number of Base Lightning components (lightning-map and lightning-card in the Housing Map component were examples of Base components we used above).
Wiring client-side to the backend Apex data service is simplified with the JavaScript decorators (example, @wire decorator we used in the code above) and built-in modules (@salesforce/apex).

This was a very simple LWC example. Want to see a more advanced example of a Lightning web component? Take a look at the components involved in building the property explorer page in the Get to Know the Sample App unit of the Quick Start: Explore the Dreamhouse Sample App Trailhead module. Here we use a Lightning web component to customize the application's user experience completely.

Custom page built with Lightning Web Components.

Another option? Install and explore the complete Dreamhouse Sample app to learn more about building an end-to-end application on the Salesforce Platform.

What’s Next?

This project gave you an overview of what it’s like to be a developer working with Salesforce Platform capabilities like LWC and Apex. However, that's not all you can do!

Heroku is another product our developers can use if they fully need to control the horizontal and vertical scaling of the app resources. And with the Salesforce suite of products and Salesforce AppExchange, the sky’s the limit for learning opportunities for you.

You aren’t alone in the learning journey. Collaborate, network, build connections, and learn Salesforce development with other developers globally in the Salesforce Developer Group in the Salesforce Trailblazer Community.
